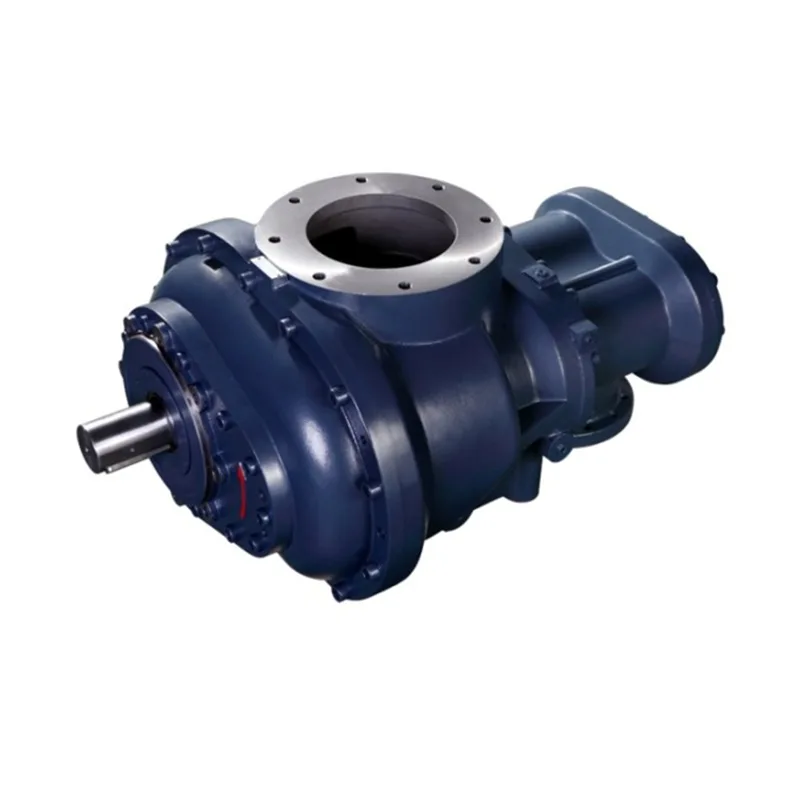

1. Single-Stage Air Ends (Standard Efficiency)

The single-stage units are the workhorses of the industry, focusing on durability and cost-effectiveness. In these units, the air is compressed from intake pressure to discharge pressure in a single rotation cycle.

Key Design: Features a precision-machined male and female rotor set.

Performance: Optimized for standard industrial applications where space and initial cost are primary considerations.

Applications: General manufacturing, pneumatic tools, and textile industries.

Distinctive Feature: Known for a simplified structure that reduces maintenance complexity while maintaining Hanbell’s signature reliability.

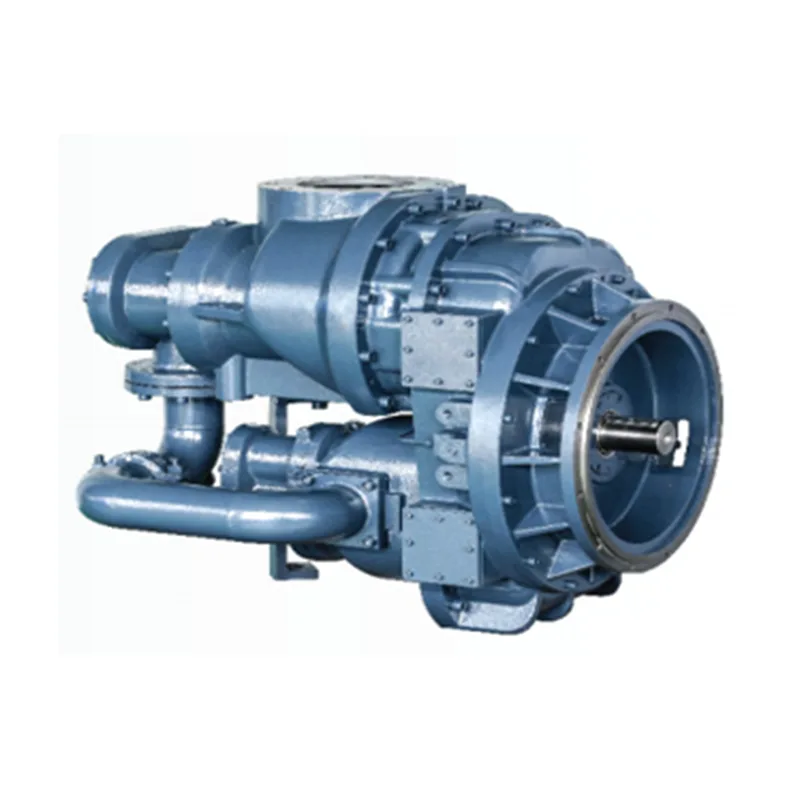

2. Two-Stage Air Ends (High Efficiency)

Two-stage compression is the "premium" classification. Instead of one set of rotors, the air is compressed in two distinct steps, usually with inter-stage cooling.

Key Design: Two separate sets of rotors (Stages 1 and 2) integrated into a single housing.

Performance: By reducing the pressure ratio per stage, internal leakage is minimized, and volumetric efficiency increases. This typically results in 10%–15% energy savings compared to single-stage units.

Applications: Large-scale industrial plants, 24/7 operations, and energy-conscious facilities.

Distinctive Feature: "Yuzhen" specifically markets these as "World-Leading" core components, emphasizing their role as the high-end power core for Hanbell’s top-tier compressors.

Comparison Table: Yuzhen Air End Classification

Technical Highlights of Yuzhen/Hanbell Manufacturing

Regardless of the classification, all Yuzhen air ends follow these manufacturing standards:

Rotor Profile: Utilization of Hanbell’s patented rotor profiles for maximum displacement.

Precision: Processed using world-class CNC grinding machines to ensure micron-level tolerances.

Versatility: Beyond standard air, these designs are often adapted for refrigerant compression, leveraging Hanbell's massive footprint in the HVAC industry.

Note: Yuzhen functions as the precision manufacturing arm, ensuring that the "heart" of the compressor—the air end—meets ISO standards for vibration and noise control.
